Volcano FDTh

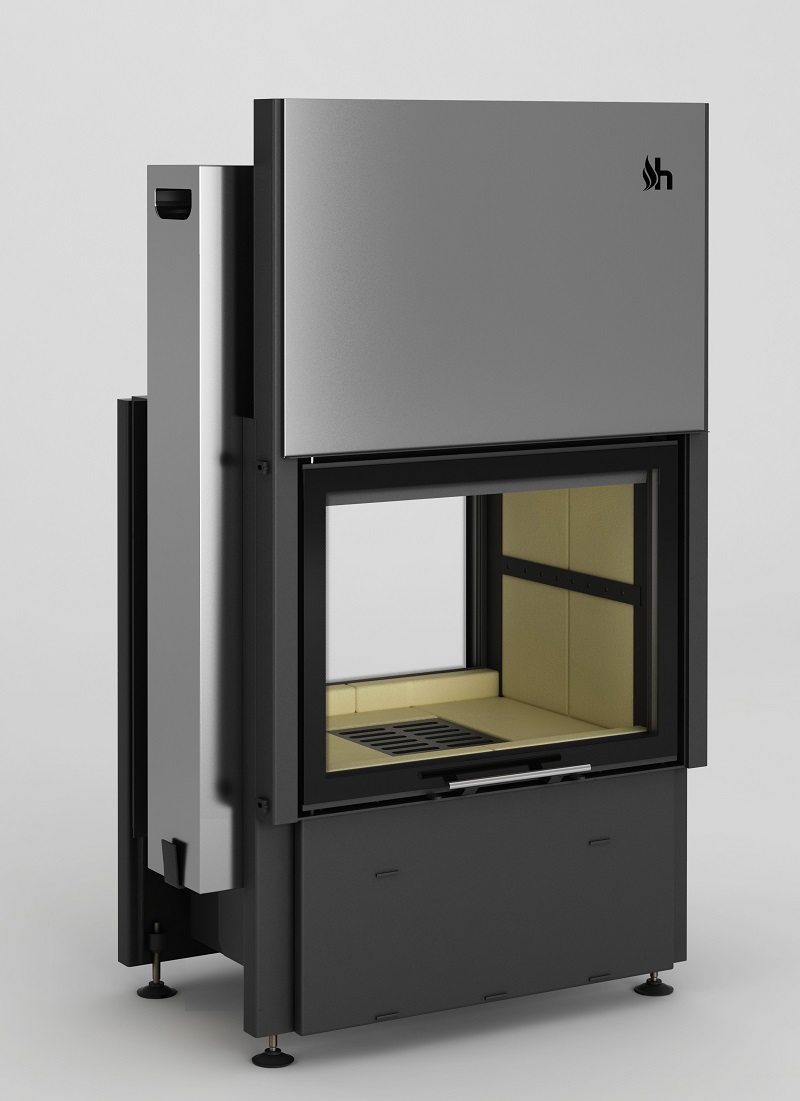

Volcano FDTH fireplace insert
Translucent from two opposite sides. Frameless door with a lifting device.

Rated heat output: 11kW

Exhaust outlet: fi200

Door: frameless, lift-up door.

Weight: approx. 245kg

Description: Two panes of glass, tunnel-shaped, with a lift-up door

The fireplace insert Volcano FDTH is an economical and environmentally friendly solution for heating your room and, of course, your house efficiently. The Volcano FDTH fireplace creates a cozy and comfortable atmosphere, especially in the cold winter months. The fireplace not only generates heat, but also a pleasant, crackling sound and atmospheric lighting. This three-sided glass fireplace creates a special atmosphere, because the fire is visible from three sides.

Fireplace inserts with a water jacket are an efficient way to save heating costs while creating a cozy atmosphere. The fireplace insert has an efficiency of over 80% to 90% and low exhaust gas values (BImSchV level 2).

This fireplace insert is certified and approved for use throughout Europe. All important, strict European standards EN 13240, EN 13229 and DIN 18895 are met. Of course, the requirements of the BImSchV Level 2, Art. 15a B-VG of Austria and LRV of Switzerland are also met. So with this fireplace insert, you get a fireplace insert for the future!

The fireplace is lined with fireclay bricks that are at least 5 cm thick. This gives you optimal heat storage, even when the fire is no longer burning.

The modern steel fireclay construction with double casing is a proven solution for fireplaces that is designed for durability and reliability. This construction, which has been used successfully for years, guarantees you a fireplace that will reliably serve its purpose for many years.

Here are some of the features and benefits of this design:

• Robust steel chamotte: The use of high-quality steel and chamotte in the construction ensures a high level of resistance to heat and mechanical stress. This makes the fireplace suitable for long-term use and offers you a reliable heating solution for many years.

• Double casing: The double casing provides improved thermal insulation and helps to keep the heat inside the fireplace. This results in efficient heat emission and lower heat loss, which in turn leads to cost-efficient use.
• Durable welding: The smoke tube of the cassette is permanently and solidly welded to the fireplace body, without the need for sealing materials or screws. This ensures a durable and secure connection that can withstand daily stresses.
• Welding in a protective atmosphere: The welding is carried out using a protective gas, which results in a high-quality and tight bond. These high-quality welds provide added safety and ensure reliable performance in daily use.
• Safety and quality: The construction is designed to meet the highest safety standards and to ensure safe use in daily operation. The high-quality materials and careful workmanship guarantee long-term quality and reliability of the fireplace.

Overall, the modern steel fireclay construction with double casing offers a long-lasting and reliable solution for your heating needs. With its solid construction, high-quality welded joints and excellent thermal insulation, you can be sure that your fireplace will give you many years of service.

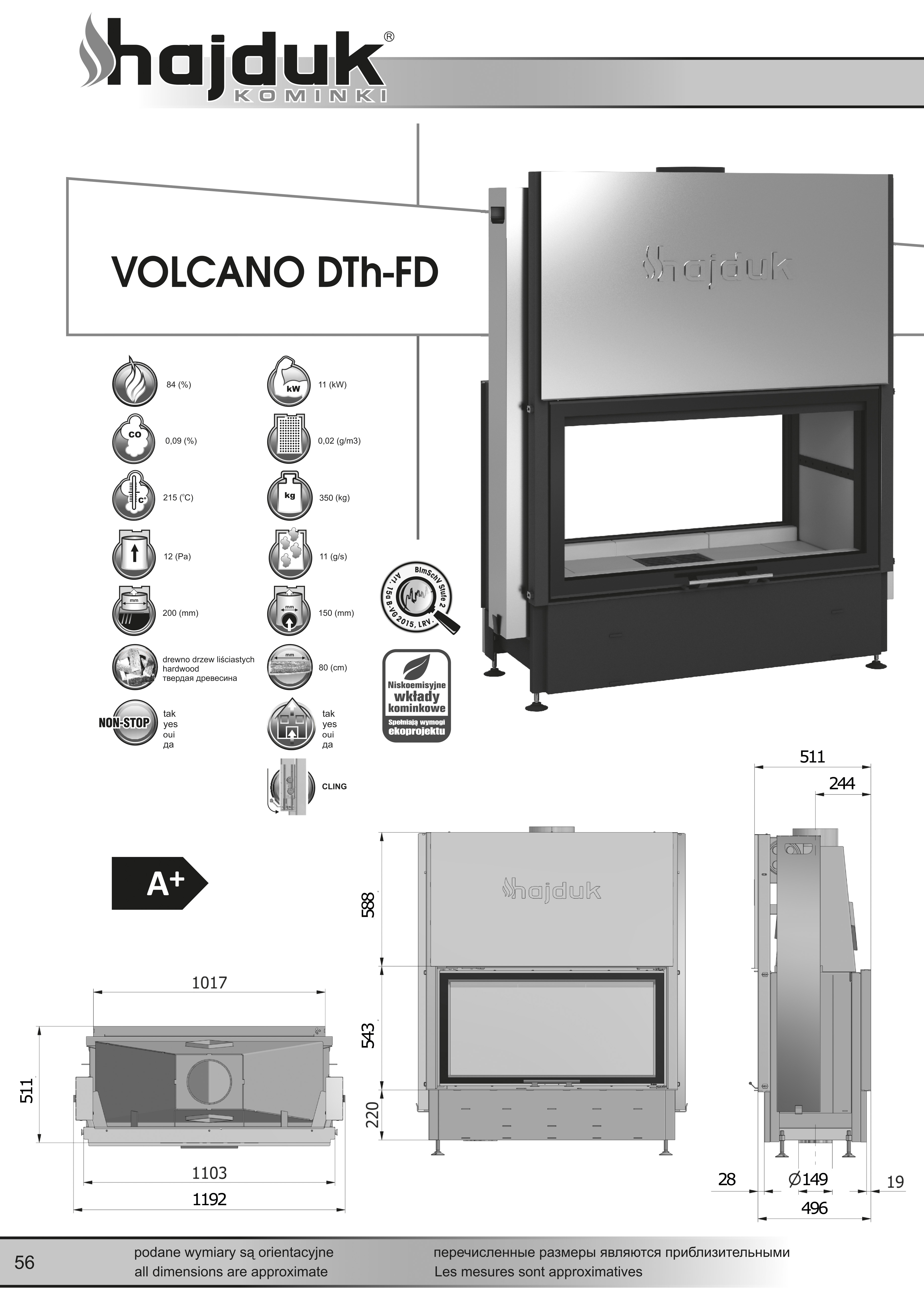

Technical data:

• Rated heat output: 11 kW

• Dimensions: Height: 133.4 cm x Width: 79.3 cm x Depth: 59.1 cm
• Dimensions of front lift door: Height: 510 mm x Width: 764 mm
• Dimensions of rear standard door: Height: 510 x Width: 674 mm
• Weight: 245 kg
• Door and a standard swing door for cleaning

• Flue pipe diameter: 200 mm, outlet at the top
• External air supply diameter: 150 mm, outlet at the bottom
• German Emission Control Ordinance (BImSchV): 1st stage: Yes, 2nd stage: Yes
• §15a B-VG (Austria): Yes
• VKF Switzerland: Yes

• CE mark: Yes
• Dust: 0.021 mg/Nm³

• Carbon monoxide (CO): 1.00 g/sm³
• Efficiency: 84 %
• Exhaust gas temperature: 260°C
• Exhaust gas mass flow: 8 g/s
• Minimum conveying pressure: 11 Pa
• Fuel: split logs
• Wood consumption 3.7 kg/h
• Max. length of split logs: 50 cm

• Design A1 self-closing door (multiple chimney occupancy): Yes
• 24-hour operation: Yes
• Pane flushing: Yes

Scope of delivery:

• Fireplace insert: Volcano FDTH fireplace insert - translucent from two opposite sides. Frameless door with a lifting device.
• Cast-iron ember grate
• Ash pan
• Connection for external air supply - optionally possible
